RDM MICR Qualifier GTX

RDM MICR Qualifier GTX is the next generation in MICR (Magnetic Ink Character Recognition) Quality Control Workstations. Developed in response to the needs of bank item processing centers and document printers, the GTX delivers user-friendly features such as a graphical display of MICR characters, analysis of character dimensions, and embedded PDF reporting.

The GTX demystifies the process of identifying reject causes. It facilitates communication between banks, corporations and printers, improving MICR quality and reducing costly rejects.

As a component of RDM’s “Reject Reduction” solution, the MICR Qualifier GTX is an invaluable tool for banks, payment processing centers, corporate clients and check printers. With the advent of laser MICR printing, a change from signal strength problems to MICR character dimensional quality problems has occurred. Using the highest level of detection technology, we test beyond the American Bankers Association (ABA) and American National Standards Institute (ANSI) X9.27 and X9.13 standards.

When utilizing the GTX reporting software, banks have, on average, resolved 35% or more of their MICR related problems within 60 days. The speed and efficiency of the GTX allows the preparation for more reports in a shorter period of time.

The Qualifier GTX utilizes high-speed, straight-through transports that have reader/sorter grade components with technology that can analyze a document in seconds. The GTX identifies all common problems including; signal level, line format, spacing, MICR line intrusions, extraneous ink, character dimensions and font issues.

Individual character representation and user programmable signal alarm levels ensure the highest level of quality analysis.

The GTX supports multiple international formats and newer digital print technologies such as laser. Ease of use is ensured through user-friendly software and single click operations.

Features RDM MICR Qualifier GTX

• Report Generation
• Graphical representation of ANSI character dimensions
• PDF file formats of analysis screens
• Save data to disk
• Embedded PDF reporting
• Dimensional waveform analysis
• Character spacing data table
• Extraneous ink detection
• French language format avaialble

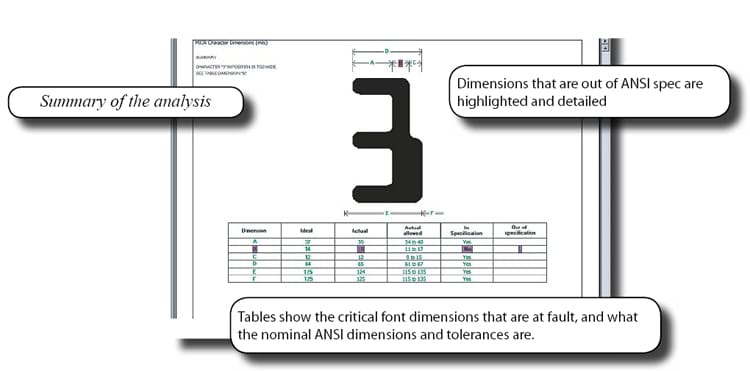

The MICR Qualifier GTX clearly explains where and how MICR Characters deviate from allowable tolerances.

Older equipment produces difficult to read “waveform” reports that require significant technical expertise to understand. With the GTX’s advanced reporting functions, it is easy for even non-technical people to clearly explain print quality issues. PDF analysis file easily generated and email to any PC with Adobe™.

• 100 inch/second transport speed
• ANSI specified read/write head and amplifier
• Test entire 5/8” clear-band
• Power Supply: 115 VAC, 60 Hz; 220, 240 VAC 50 Hz
• Weight: 27 lb.
• Dimensions: 13”(W) x 8” (H) x 10” (L)

• Pentium IV, 200 MB available hard disk space
• Windows 2000/XP/Vista
• 1024 x 796 video set to 256 colors
• Windows supported printer
